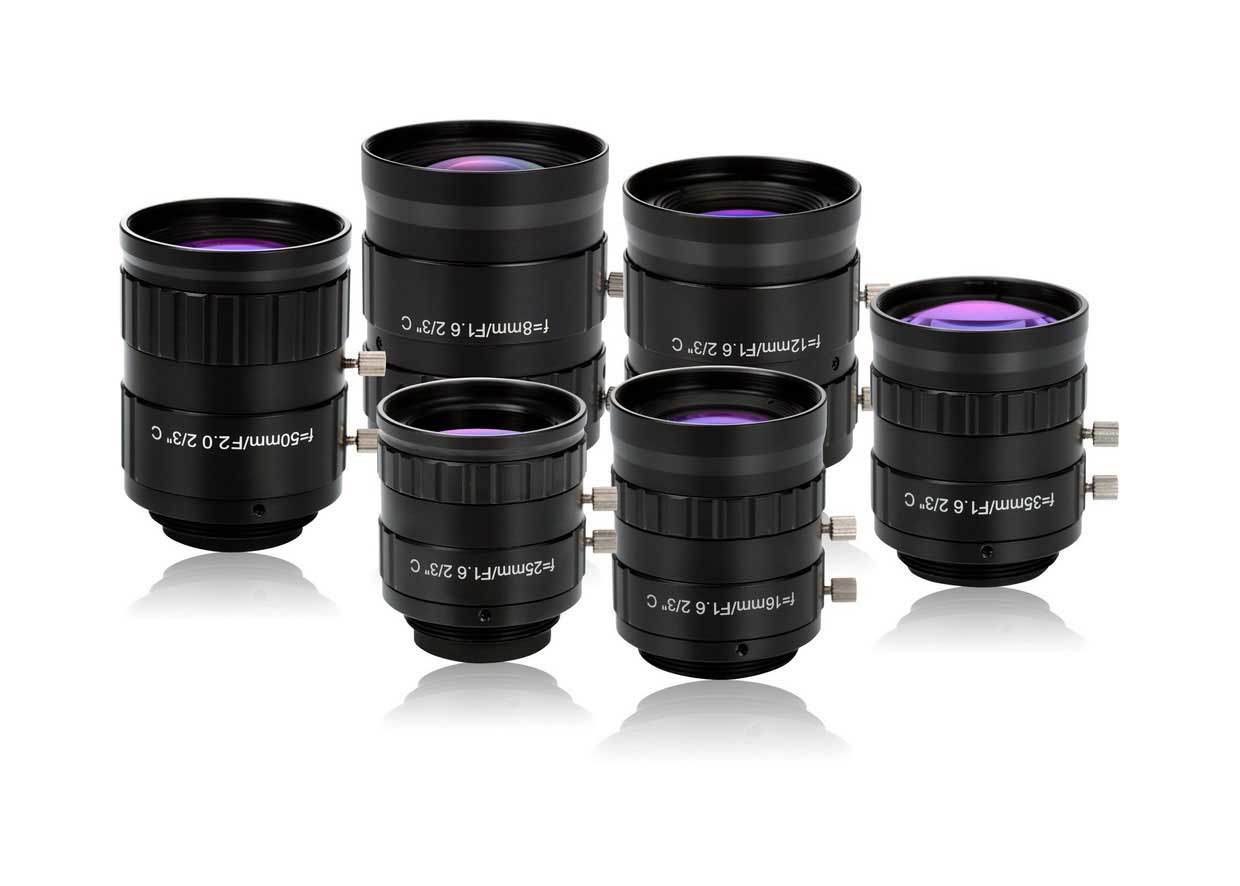

2/3 Inch 5MP Industrial Lens Details Specification List

Our company's industrial lens is a high-performance, high-resolution industrial lens with ultra-low distortion design and low distortion rate. It is widely used in industrial safety monitoring, high-precision measurement, detection, recognition and other industrial machine vision and image processing systems.

The image contrast is extremely high 5MP performance for the price of 2MP high resolution, low distortion, high brightness uniformity Support up to 2/3 inch chips, compatible with 1/1.8 inch chips

Model	Flange Distance(mm)	Iris(F/#)	Working Distance(mm)	Distortion(%)	Relative IIIumination(%)	Filter Screw Size	Format Size(")	Mount	Download Details

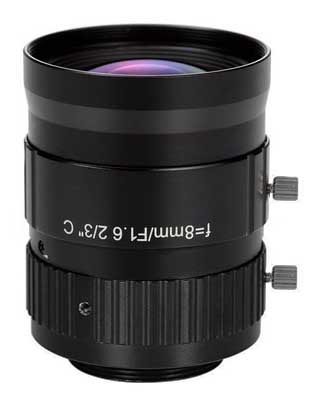

CNV085M	8	1.6-16	100-1500	<0.3	>70	M35.5*P0.5	2/3	c

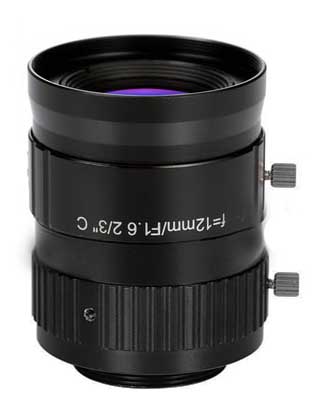

CNV125M	12	1.6-16	100-1500	<0.15	>70	M35.5*P0.5	2/3	C

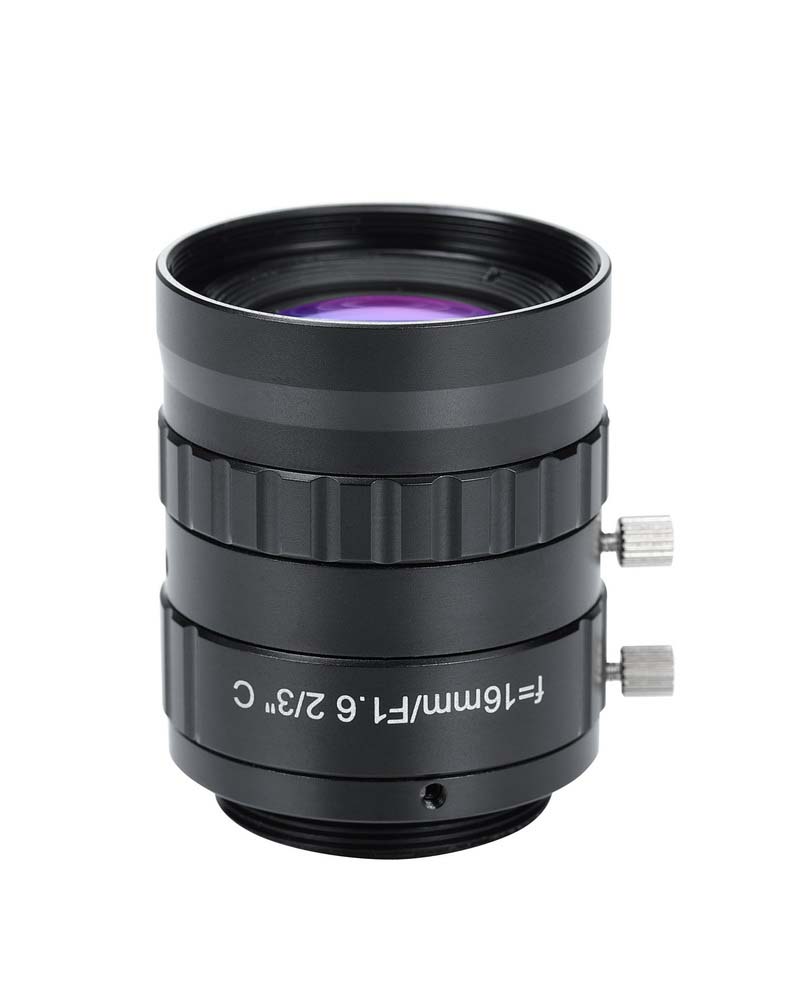

CNV165M	16	1.6-16	100-1500	<0.1	>70	M30.5*P0.5	2/3	c
CNV255M	25	1.6-16	100-1500	<0.1	>76	M30.5*P0.5	2/3	C

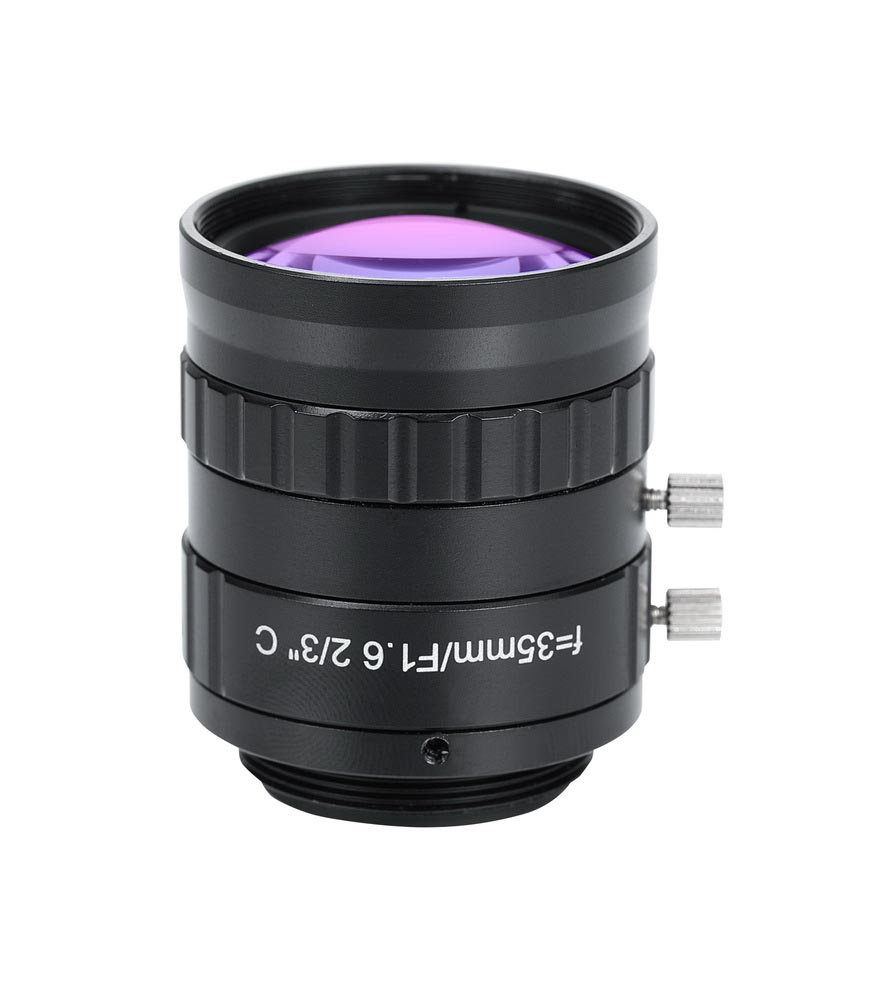

CNV355M	35	1.6-16	150-1500	<0.15	>76	M30.5*P0.5	2/3	c
CNV505M	50	2-16	300-INF.	<0.05	>76	M30.5*P0.5	2/3	c
